Get an Extruded Aluminum Enclosure for Electronics & Industrial Protection
Extruded Aluminum Enclosure
Conglin manufactures custom extruded aluminum enclosures for PCB assemblies, sensors, control systems, power modules, telecom equipment, and industrial devices. We support extrusion, CNC machining, surface finishing, and enclosure kit production based on your drawings or samples.
At Conglin, our aluminum enclosures are manufactured according to ASTM B221, EN 755, and GB/T 6892 standards. Conglin operates under ISO 9001, ISO 14001, and ISO 45001 certified management systems to ensure consistent quality, environmental responsibility, and workplace safety.
Overview:
- Alloys: 6063-T5/T6, 6061-T6
- Size Range: Width 30–500 mm; height 20–300 mm
- Wall Thickness: 1.2–5.0 mm typical
- Length: Up to 6 m, cut-to-length available
- Finishes: Anodizing, powder coating, brushing, sandblasting
Types of Extruded Aluminum Enclosures We Manufacture
Conglin manufactures different types of extruded aluminum enclosures for electronics, industrial control systems, power modules, telecom equipment, and OEM assembly projects.
| Enclosure Type | Best For | Key Features |
|---|---|---|
| Aluminum PCB Enclosure | Circuit boards, sensors, controllers, and compact electronic devices | Internal PCB slots, screw channels, compact profile design, and stable assembly |
| Finned Aluminum Enclosure | Power modules, LED drivers, inverters, and heat-sensitive electronics | Integrated heat dissipation fins for improved passive cooling and long-term operation |
| Aluminum Project Enclosure | Custom electronics, instruments, testing equipment, and industrial devices | Cut-to-length service, CNC openings, flexible surface finish, and custom dimensions |
| Open Frame Aluminum Enclosure | Industrial control systems, automation modules, and equipment protection | Lightweight structure, easy assembly, flexible mounting, and custom profile design |
| Aluminum Enclosure Kit | OEM production, batch assembly, and complete enclosure sourcing | Profiles, end plates, screws, gaskets, mounting parts, and accessories available |
Custom Aluminum Enclosure Manufacturing Capabilities
Conglin supports custom extruded aluminum enclosures from profile development to finished parts, helping OEM buyers simplify sourcing and assembly.
- Custom Die Design: PCB slots, screw channels, mounting grooves, and heat dissipation structures
- Aluminum Extrusion: Custom size, wall thickness, and enclosure profile production
- CNC Machining: Holes, ports, threads, slots, and mounting features
- Cut-to-Length: Required lengths for prototype or batch production
- Surface Finishing: Anodizing, powder coating, brushing, and sandblasting
- Kit Support: End plates, screws, gaskets, and mounting accessories
Product Specifications
| Item | Specification |
|---|---|
| Product Name | Extruded Aluminum Enclosure |
| Product Type | Aluminum Extrusion Housing |
| Cross-section Shape | Rectangular / U-shaped / Custom |
| Overall Width | 30 – 500 mm |
| Overall Height | 20 – 300 mm |
| Wall Thickness | 1.2 – 5.0 mm |
| Internal Features | PCB slots / screw channels / guide rails |
| Cross-section Area | mm² (per drawing) |
| Theoretical Weight | kg/m |
| Standard Length | ≤ 6 m |
| Custom Length | Available |
| Cut-to-Length | Saw cut / Precision cut |
| Dimensional Tolerance | ±0.1 mm |
| Straightness | ≤ 1 / 1000 |
| Item | Specification |
|---|---|
| Common Alloys | 6063 / 6061 |
| Alloy Series | 6000 Series |
| Temper | T5 / T6 |
| Density | 2.70 g/cm³ |
| Standards | EN 755 / ASTM B221 / GB/T 6892 |
| Typical Applications | Electronics housings, control boxes, power enclosures |
| Property | 6063-T5 | 6061-T6 |
|---|---|---|
| Tensile Strength (MPa) | ≥160 | ≥260 |
| Yield Strength (MPa) | ≥110 | ≥240 |
| Elongation (%) | ≥8 | ≥10 |
| Brinell Hardness (HB) | 60–75 | 90–95 |
| Elastic Modulus (GPa) | 69 | 69 |
| Structural Strength | Medium | High |
Why Choose Our Extruded Aluminum Case Options
Custom Profile Designs
You’ll receive customizable cross-sections with integrated slots, flanges, and mounting points.
Excellent Durability
Each aluminum extrusion enclosure is made with high-strength alloys that resist corrosion and thermal stress.
Precision Extrusion
Our advanced presses provide precise tolerances for EMI shielding and heat dissipation.
Efficient Assembly
Each aluminum extrusion enclosure features CNC-machined ends with pre-tapped holes to accelerate production.
Quality & Manufacturing

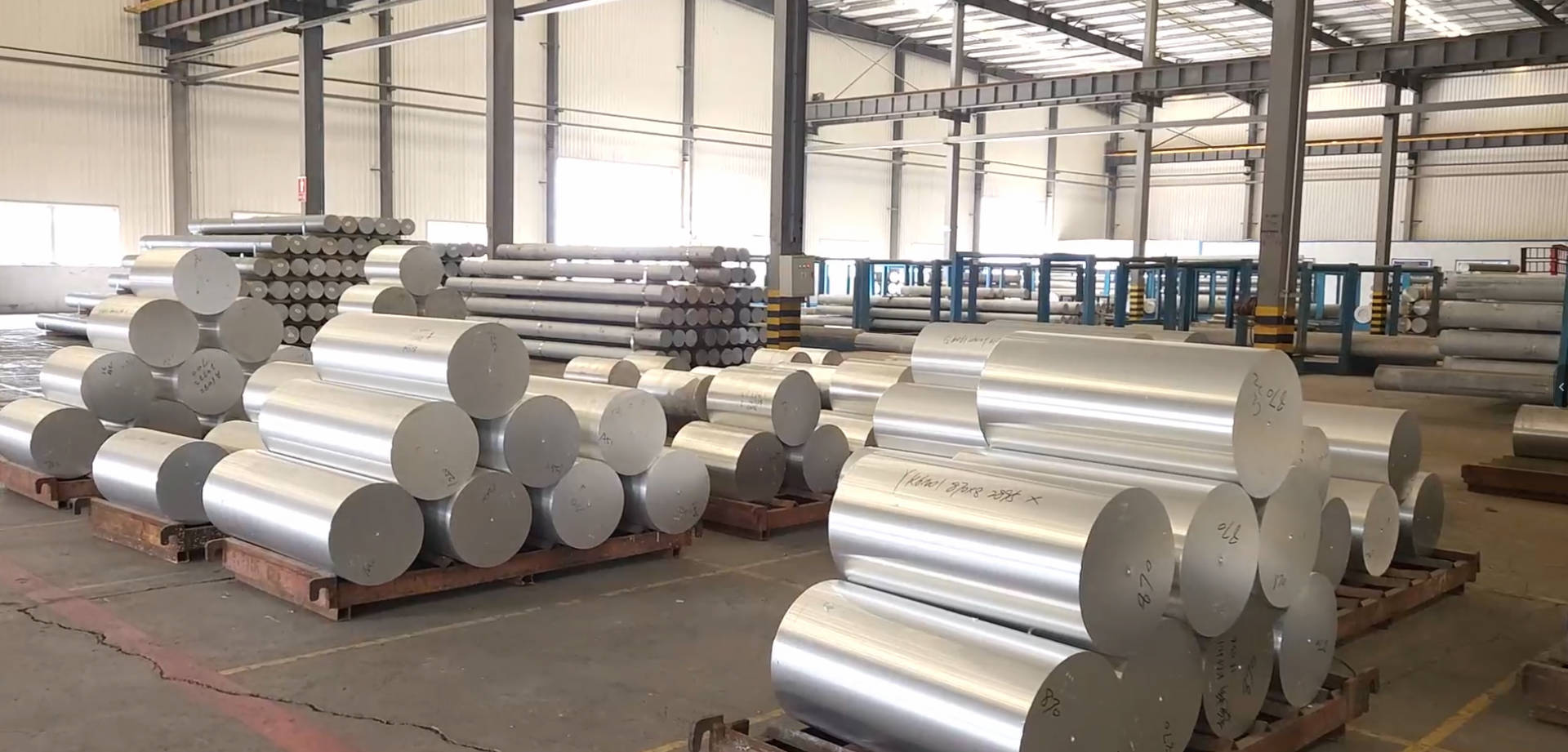

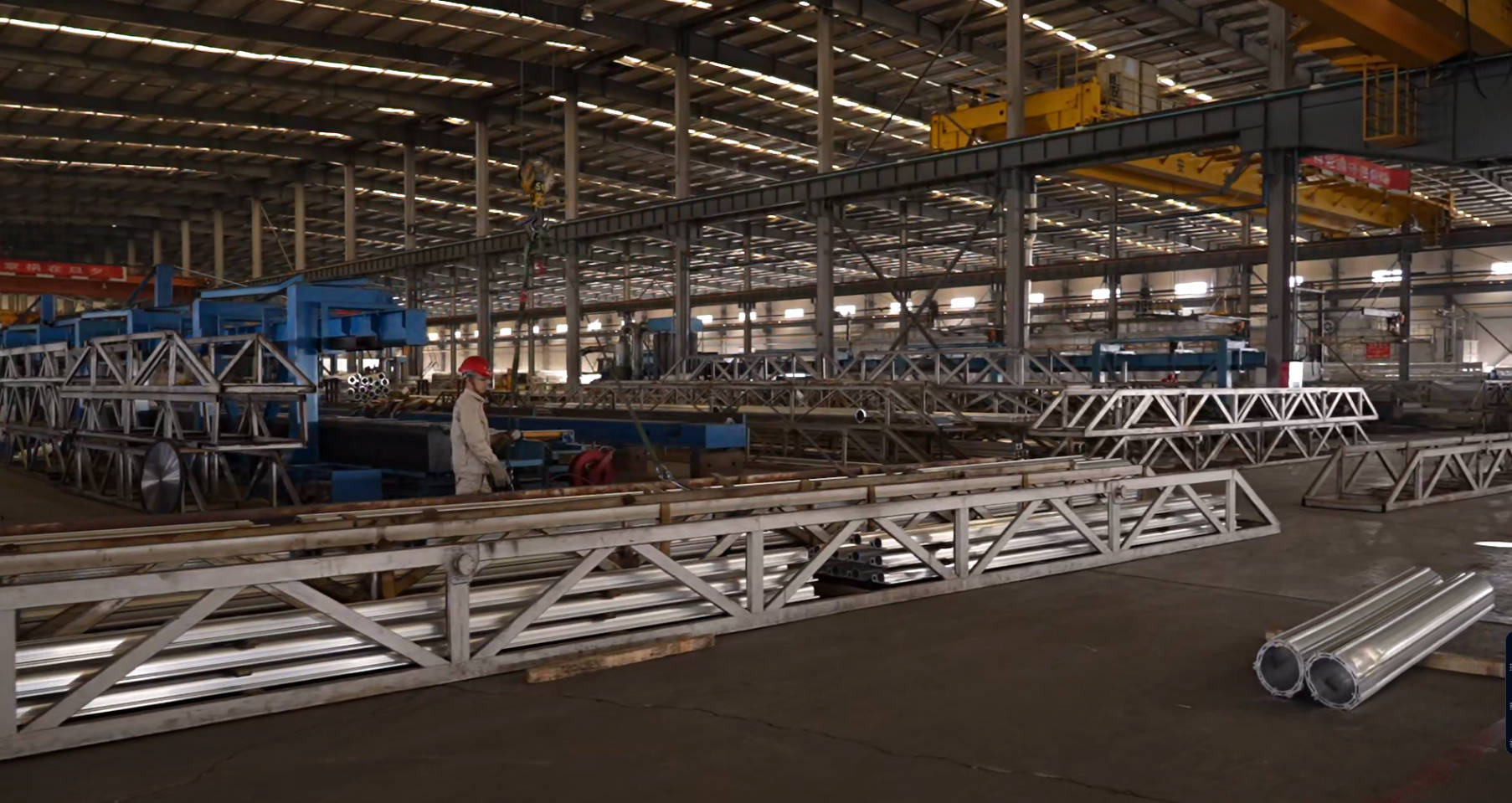

- All extruded aluminum enclosure profiles are produced by extruding heated billets.
- They go through custom dies, then are cooled and stretched before we cut them.
- We use CNC machining for ports and holes; anodized for improved corrosion resistance.

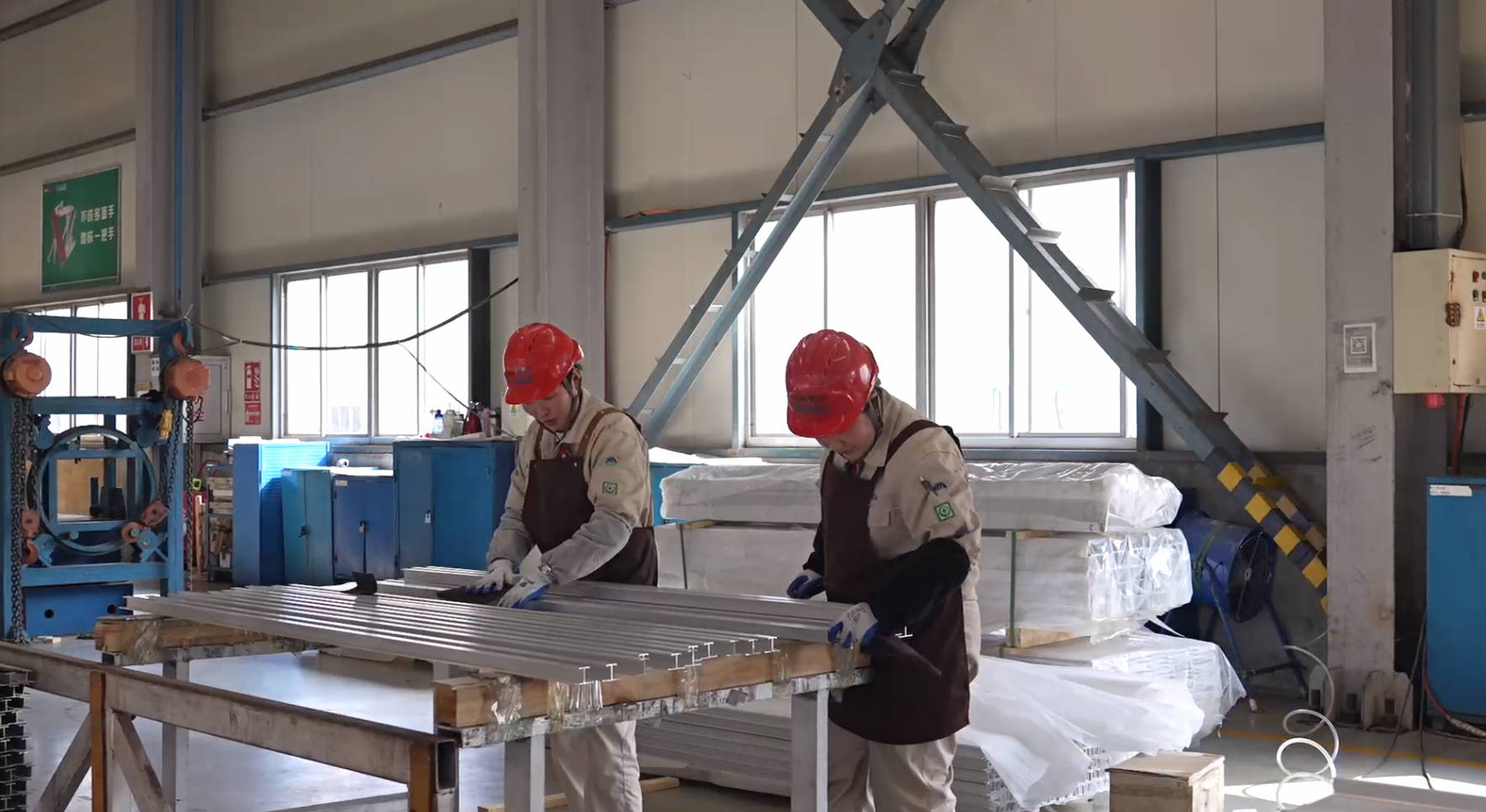

- We conduct thorough inspections here to ensure flatness, dimensions, and strength.
- ISO 9001 / SGS / RoHS Certified, ASTM B209, EN 485 Compliant
About Conglin Aluminum
Conglin Aluminum has been established for over 30 years. We are a leading manufacturer of industrial aluminum profiles, equipped with 15 extrusion lines and comprehensive in-house operations. We handle everything from die design and extrusion of aluminum boxes to CNC machining, finishing, and welding.
We provide dependable extruded aluminum cases for excellent electronics protection.
Let’s discuss your business operation’s extruded aluminum profile needs.
Our Case Studies
Applications of Extruded Electronic Enclosures
These enclosures protect delicate components. They combine strength and lightness, making them suitable for demanding industrial and medical environments, while allowing easy access and safeguarding your equipment. Therefore, common uses of Conglin’s extruded electronic enclosures include:
- Electronics housings and junction boxes
- Industrial control panels & automation
- Medical device enclosures
- Telecommunications equipment
- Instrumentation & sensors
Extruded parts use continuous profiles for lightweight, customizable lengths. But die-cast parts accommodate complex shapes via molding.
Yes, we customize your enclosures through CNC machining after extrusion for holes and slots.
Anodizing creates a rust-resistant enclosure. Powder coating makes it more durable.
